Compression (B)

Tablet Compression is one of the final steps of the manufacturing process and requires the final blended powder to be transferred into the table press. Preventing product segregation, providing a consistent product feed-rate, and managing dust control are all common challenges with this process. Rheo offers several material handling packages for this process. Portable Variable Height Drum Tipper with a compression funnel provides an operator friendly, semi-closed powder transfer system. An integrated Ventilation Sleeve provides local dust extraction at the transfer connection.


key stat icon

100-10μg/m³
Containment

key stat icon

500cfm
Point Source Capture

key stat icon

30 seconds
Drum Tipping

key stat icon

200 kg
Capacity


Request
Drawing

Request
Brochure

Variable Height Drum Tipper

The Rheo Drum Tipper addresses the ergonomic risk factors associated with manually dumping drums. Each Drum Tipper is designed to meet the specific requirements of the application (drum weight, discharge height, discharge reach, etc.). The dual stage Variable Height Drum Tipper is configured to serve a range of discharge heights. This is ideal for workplaces where one machine must serve multiple applications or where discharge heights exceed 60 inches.



Ventilation Sleeve

The Rheo Ventilation Sleeve provides localized dust extraction to capture airborne dust and vapor. The full perimeter slot design provides 360 degrees of extraction to ensure that the required capture velocity is achieved across the entire opening of the Ventilation Sleeve. Each Ventilation Sleeve is engineered to interface with the equipment it serves. The Ventilation Sleeve can be offered as a standalone fixture or mounted on an articulating, height adjustable arm. These arms can be integrated with a portable cart or a wall mounted plate.

Several options are available to ensure the best solution for the application. These options include bag landing tables, bag disposal ports, integrated lids, custom adapter plates, and product grates.

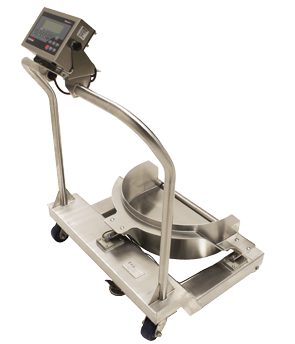

Drum Cart with Integrated Weighing

Rheo Drum Carts allow drums to be easily moved from one location to another. Drum Carts are ideal for environments where GMP compliance is a priority. Integrated weighing allows for drums to be weighed while on the Drum Cart, eliminating the tedious step of loading a drum onto a scale. Stainless rollers are available to help facilitate the transfer of drums to and from pallets.

The load cells and readout are battery powered and capable of full wash-down. An integrated charger for the weighing system is included.



Rheo - Containment Equipment - Air Filtration Unit

Air Filtration Unit (Supporting Product)

Rheo offers a complete line of portable and stationary Air Filtration Units that provide a local HEPA filtration device to serve Local Exhaust Ventilation (LEV) systems. The Rheo Air Filtration Unit is designed to meet the utility requirements of multiple Rheo Ventilation Sleeves; it is also a good fit for any application with similar extraction utility requirements.

Each system is configured to comply with international electrical standards. The GMP compliant design features a small footprint and noise rating of 76 dBa. Safe Change filters and activated carbon filters for VOC’s are also available.

Rheo Air Filtration Units are a cost effective alternative to upgrading house exhaust systems that have become over utilized or where there is a need to prevent the contamination of the house exhaust system ducting.
