Bin Stack Frame System

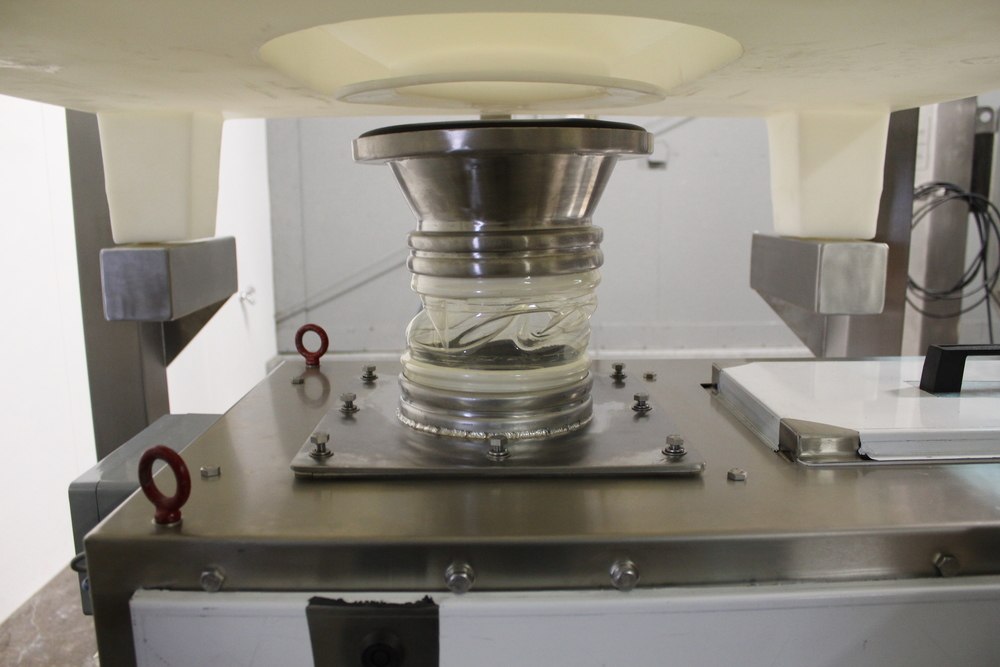

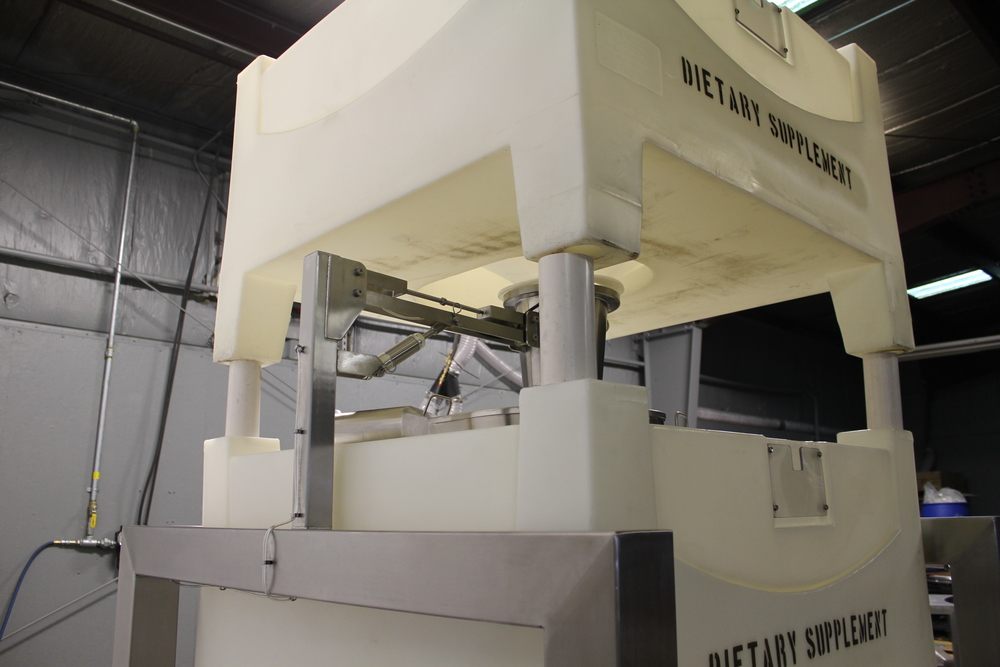

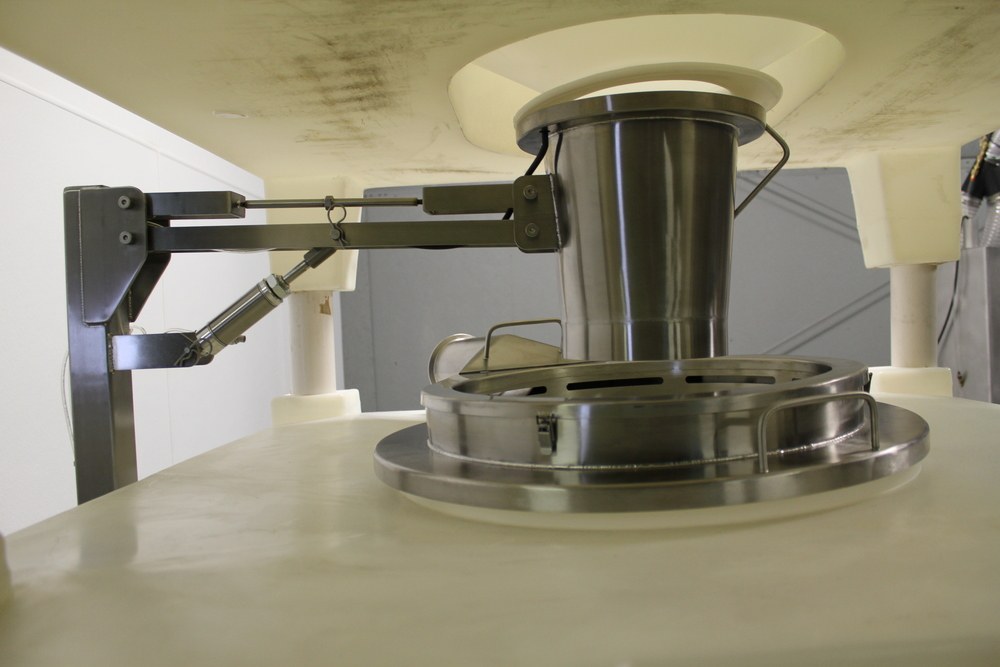

This project consisted of a custom frame system which used product bins as tablet hoppers to feed a continuous tablet coater. A bin mounted to a post hoist was emptied from above into an intermediate bin through an Rheo Ventilation Sleeve. The intermediate bin acted as a hopper to directly feed a weigh belt which weighed the capsules and distributed them onto a conveyor system. Rheo designed and fabricated the frame, Ventilation Sleeve, and all transition points between the two bins and the weigh belt.

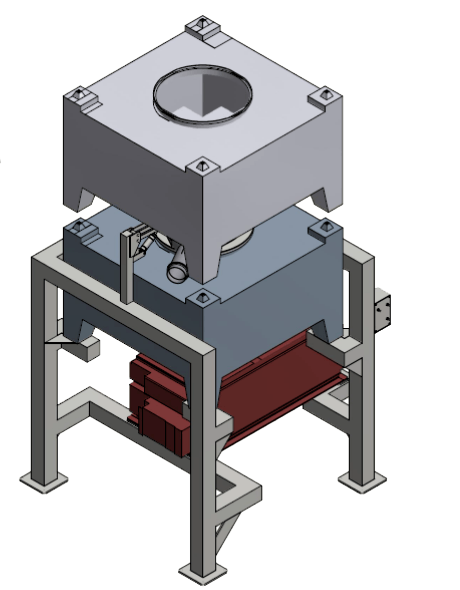

Bin Stacking Frame System rendering

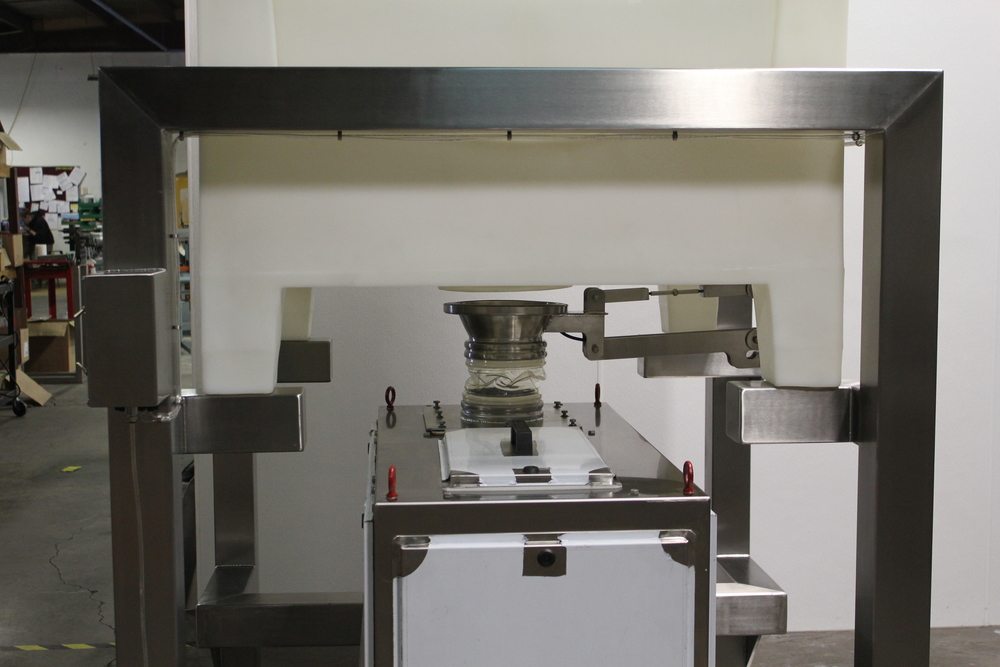

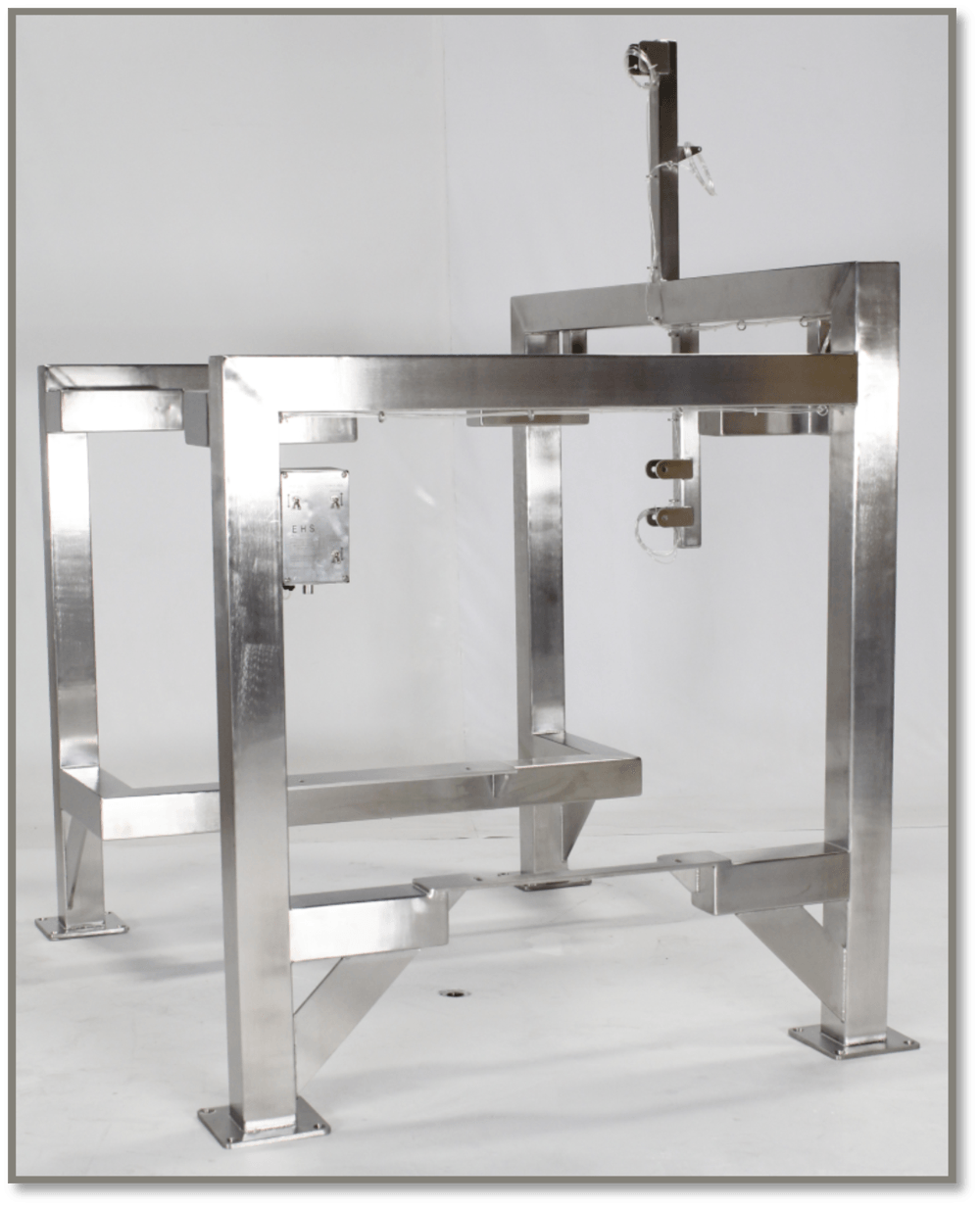

Bin Stacking Frame System image Rheo

Bin Stacking Frame System diagram Rheo
