The Rheo Bin Lifter is a robust machine that is designed to help operators safely lift and position bins (IBCs) for discharge or storage. The mobile column allows the transport of bins.
Bin Lifter
Features
The Bin Lifter has several benefits when implemented in the manufacturing process:
|
|
Common Specifications [customized per application]
| Load Capacity | 2,200 lbs [1,000 kg] |
| Material of Construction | 304 stainless steel |
| Surface Finish | 35 µin [0.89 µm] Ra with smooth welds as laid |
| Utility | Electric: 480 VAC, 3 Phase, 60 Hz Pneumatic or Electric (Battery) Utility Options Available |
| Controls | momentary push button controls on wash-down control pendant |
| Hazardous Rating | configurable for use in Hazardous Locations: Class I Divisions 1 and 2 [ATEX Zones 1 and 2] or Class II Divisions 1 and 2 [ATEX Zones 21 and 22] |
Design Configurations
The Rheo Bin Lifter can be configured with two different styles to best fit the specific application.
Mobile Column
The Mobile Column frame is fully mobile, requiring no floor installation. The unit lifts and positions bins (IBCs) above tall applications.

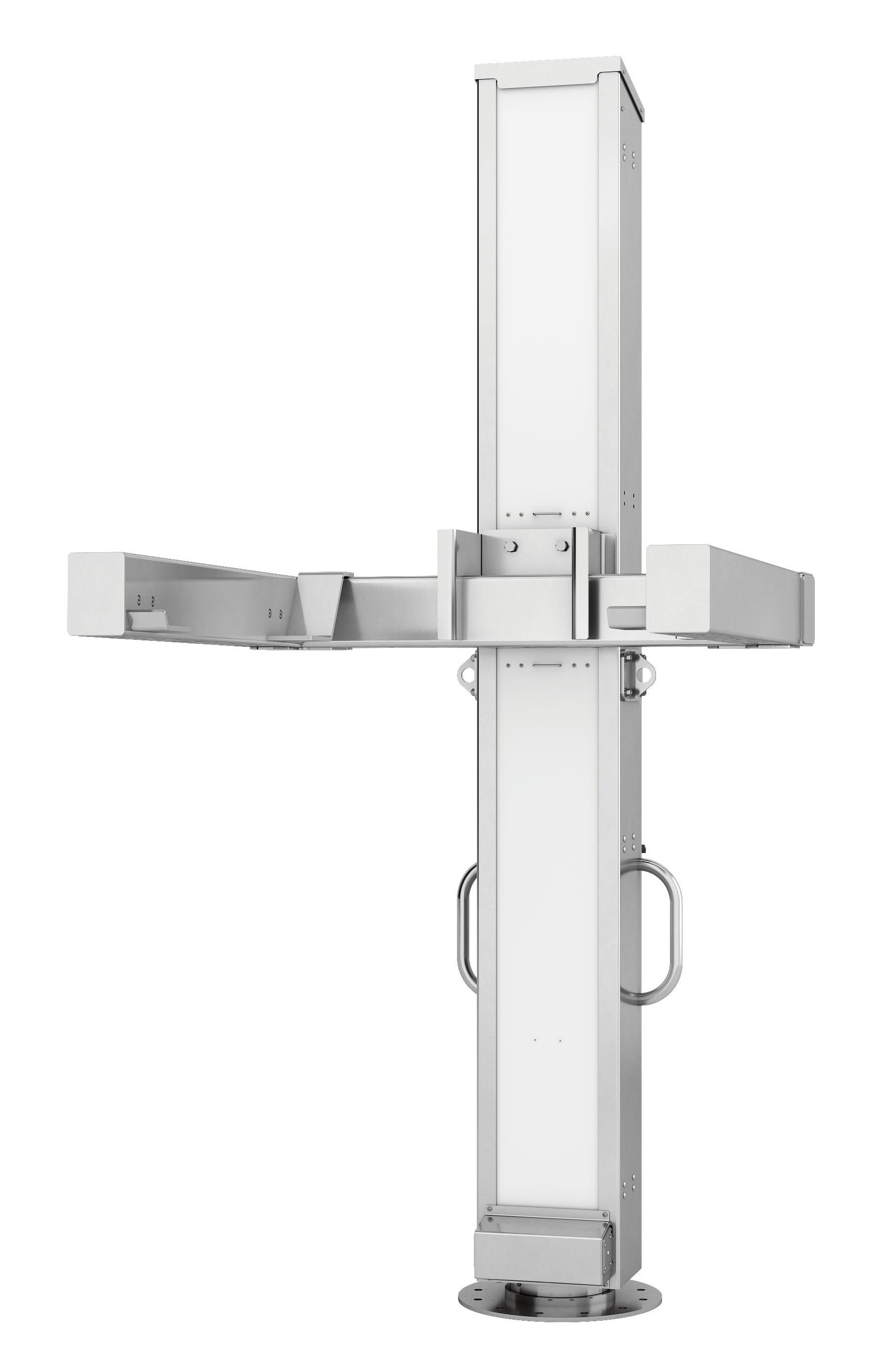

Fixed Slewing Column
This bolt down design is made for a permanent or semi-permanent installation into concrete or steel flooring. Loads the bin (IBC) in one position and then rotates over the discharge point.

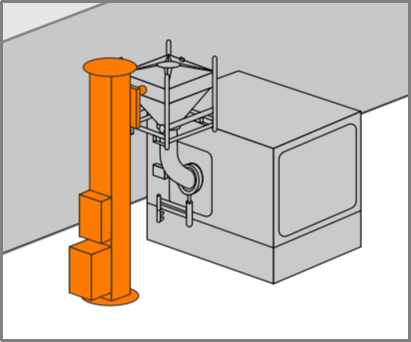

Common Applications
- Warehouse
- Raw Materials Transfer
- Tablet Press Hopper Filling
- Material Blending
