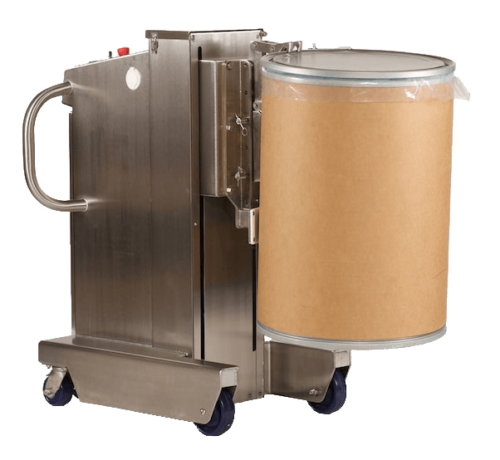

Rheo Drum Movers allow for the lifting and transportation of heavy fiber, plastic, or stainless steel drums anywhere within a manufacturing facility. There are various attachments (shown below) that can be easily interchanged.
GO BACK
Drum Mover
Drum Mover
See the Rheo Drum Mover in action in this video!
Watch
Video
Common Specifications [customized per application]
| Load Capacity | 550 lbs [250 kg] |
|---|---|
| Material of Construction | 304 stainless steel |
| Surface Finish | Product Contact Area: 25 µin [0.64 µm] Ra with ground and polished welds Non-Product Contact Area: 35 µin [0.89 µm] Ra with smooth welds as laid |
| Utility | 24 VDC Battery (includes 120 VAC, 15 A charger) Pneumatic Utility Option Available |
| Controls | momentary push button controls mounted to machine |
| Hazardous Rating | configurable for use in Hazardous Locations: Class I Divisions 1 and 2 [ATEX Zones 1 and 2] or Class II Divisions 1 and 2 [ATEX Zones 21 and 22] |
Drum Mover with Chime Gripper
Clamp uses the drum weight to securely tighten against the drum chime.
Drum Mover with Side Grippers
Grippers close securely on drum before lifting.
Drum Mover with Platform Lifter
Platform can be customized to hold various containers and objects.
Drum Mover with Custom Hoist
Hoist can be customized for each application and is height adjustable.

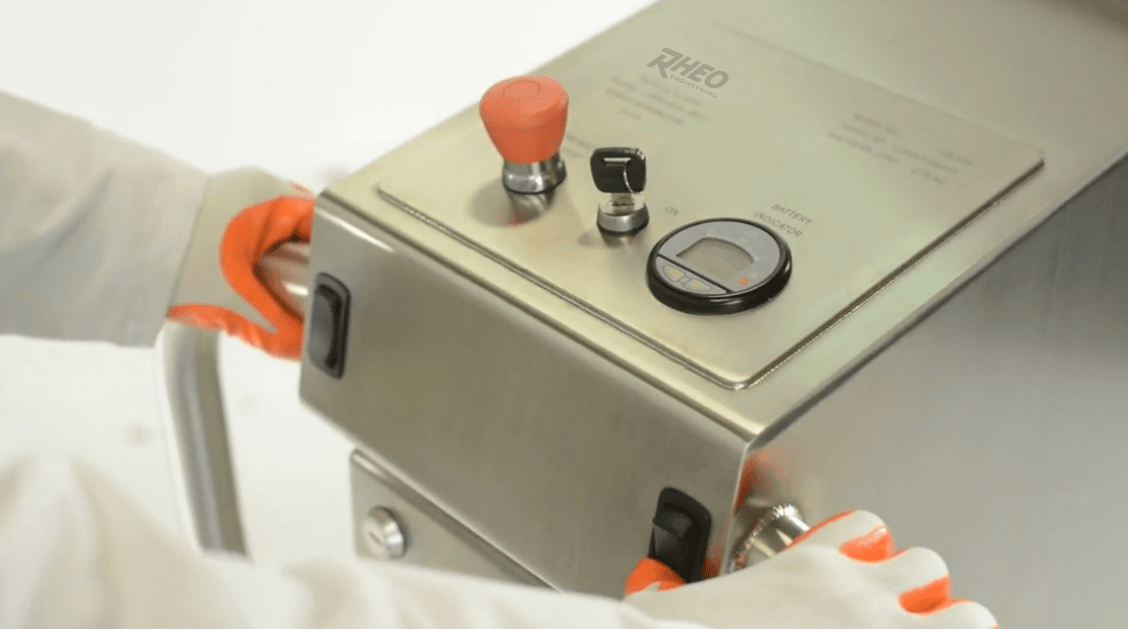

Ergonomic
The ergonomically positioned handles and thumb controls make the Drum Mover easy and intuitive to operate. Larger front wheels enable the Drum Mover to be moved with less force, while small rear wheels allow for better maneuverability. Drums can be lifted directly off a pallet side or corner without the operator having to move or reposition the drums.
Portable
The Rheo Drum Mover has easy roll casters and a small footprint design making it easy to navigate. Because the Drum Mover is battery powered with the battery charger housed within the Drum Mover enclosure, it can be operated anywhere in the manufacturing facility.

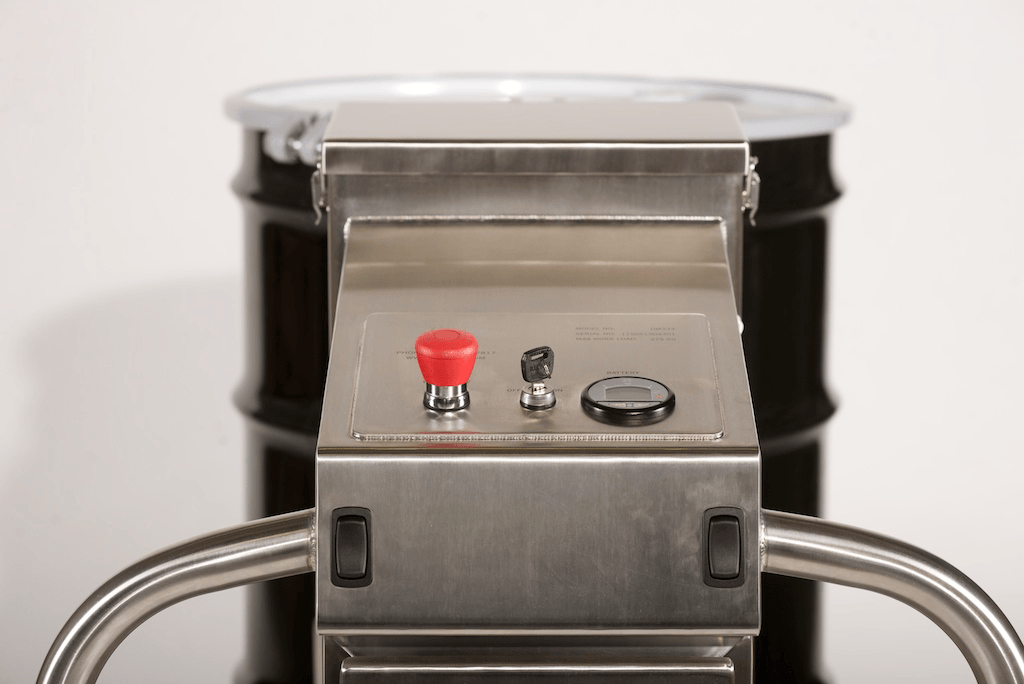

Electric Power
The Drum Mover is powered by a sealed absorbed glass mat battery. One charge can provide more than 100 lifting cycles. All electric components are housed in an IP66 rated housing.
Operator Centric Design
The Drum Mover is designed for maximum operator convenience. To pick up and move a drum, the operator has his or her hands on the transport handles at all times. Dual controls are in easy reach of the operator’s thumbs while they are still holding the transport handles of the Drum Mover.
Options
A variety of options are available for the Rheo Drum Movers to ensure the final product meets the application needs. The following are the options available:
Battery Powered Load-Cell and Weight Readout
The Battery Powered Load-Cell and Weight Readout option allows for the weight of the drum to be checked quickly and efficiently.
Drum Massager Attachment
The Drum Massager Attachment replaces the side gripping attachments with conditioning attachments. This allows the equipment operator to break up caked solids in fiber or plastic drums.
Battery Powered Wheel Drive with Integrated Controls
The Battery Powered Wheel Drive with Integrated Controls allows for complete powered handling. The drive wheel operates similar to a pallet truck and can allow for effortless push-pull motions when maneuvering the Drum Mover.
Pneumatic Power Supply
Using compressed air allows the Drum Mover to be used in any environment and requires virtually no maintenance. An on-board compressed air tank and regulator can be provided if a tethered airline is not available.
Cleanability
The entire Drum Mover can be washed down without worrying about causing harm to any electric components. Flat surfaces have been minimized to aid in the cleaning process
Surface Finish
Rheo offers several different Surface Finish options to fit your application needs.
Visit our GMP Compliance page to learn more.
